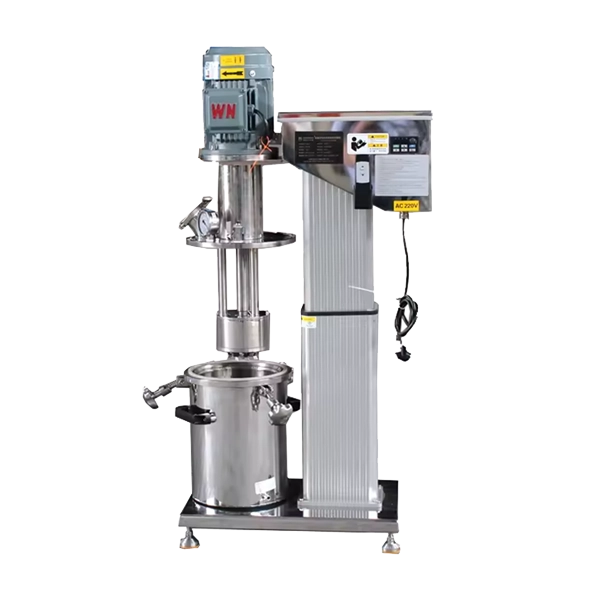

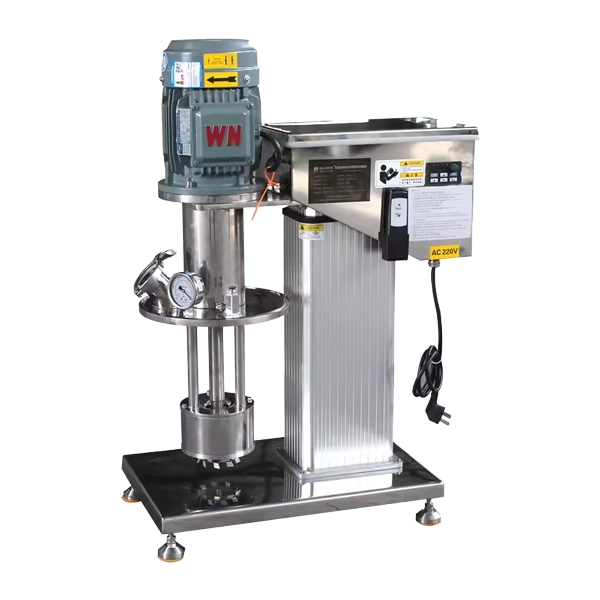

Wet Grinding Basket Mill

Shanghai Rumi Electromechanical Technology Co., Ltd's headquarters is located in the international financial center – Shanghai. We focus on providing production equipments and integral solutions for fine chemical industry and related fields. Our main products include mixing equipments, dispersing euipments, emulsifiers, mills, reaction kettle, filling machine, etc.

Online consultation Download

Description

When the basket mill is working, the motor drives the lever and the bottom dispersion disk to rotate at a high speed, causing a vacuum on the upper part of the dispersion disk and inside the basket chamber. Then the slurry is sucked into the basket grinding chamber. The lever drives the grinding media in the chamber to generate forces in all directions. The particles in the material are constantly collided and rubbed by the media, making the particle size smaller. The high-speed operation of the dispersing disc generates volex flow to suck out the material from the chamber and recirculate it, which has a very significant dispersing, grinding and mixing effect.

The basket mill integrates the dispersing and milling in one process.It’s very easy to clean and with little residue. Various sizes of processing capacity from 2L to 2000L are available.

Features

Speed adjustable (Frequency Converter Control);

Jacketed tank is optional, which can pass oil or water for heating or cooling

Contact material SUS304 and 316L are optional.

Airtight, can be pumped vacuum or protected by inert gas;

Applications

It’s especially suitable for the industries with high fineness requirements such as pigment, printing ink, coating, functional ceramics, cosmetics, medicine, photovoltaic materials and other industries.

Competitive Advantage

High Grinding Efficiency

The Max speed can be 3000rpm. The grinding beads in the basket move irregularly, resulting high-speed collision and friction with each other, making the material particle size rapidly smaller.
Easy to operate and clean.

The basket mill comes with an energy-saving frequency converter, which can directly control the start-up and speed regulation of the equipment. The unique design of the grinding chamber allows direct cleaning with solvent circulation.

Specifications

Model	Power (KW)	Speed (rpm)	Grinding Chamber Volume (L)	Processing Capacity (L)	Medium Diameter (mm)	Stroke (mm)
RMLM-1.1	1.1	0-3000	0.3	5	0.8-2.0	250
RMLM-1.5	1.5	0-3000	0.5	10	0.8-2.0	350
RMLM-2.2	2.2	0-3000	1	20	0.8-2.0	400
RMLM-4.0	4.0	0-1500	1.5	40	0.8-2.0	450
RMLM-7.5	7.5	0-1500	3.5	100	0.8-2.0	800
RMLM-15	15	0-1500	7.5	250	0.8-2.0	900
RMLM-22	22	0-1500	22	400	0.8-2.0	1100
RMLM-45	45	0-1200	45	800	0.8-2.0	1200
RMLM-55	55	0-1200	60	1000	0.8-2.0	1200
