Hydraulic Lift High Shear Homogenizing Emulsifier

Description

Usually different states of materials are not compatible. Emulsifying is a process which evenly make one phase to another continuous phase. As its structure and high linear speed, it has high efficient shear force.Through mechanical external force, the particle size of liquid-liquid and solid-liquid materials is narrowed, so that one phase is evenly distributed into another or multiple phases to achieve the effects of refinement, homogenization, dispersion and emulsification, thereby forming a stable state of liquid-liquid and solid-liquid dispersion systems.

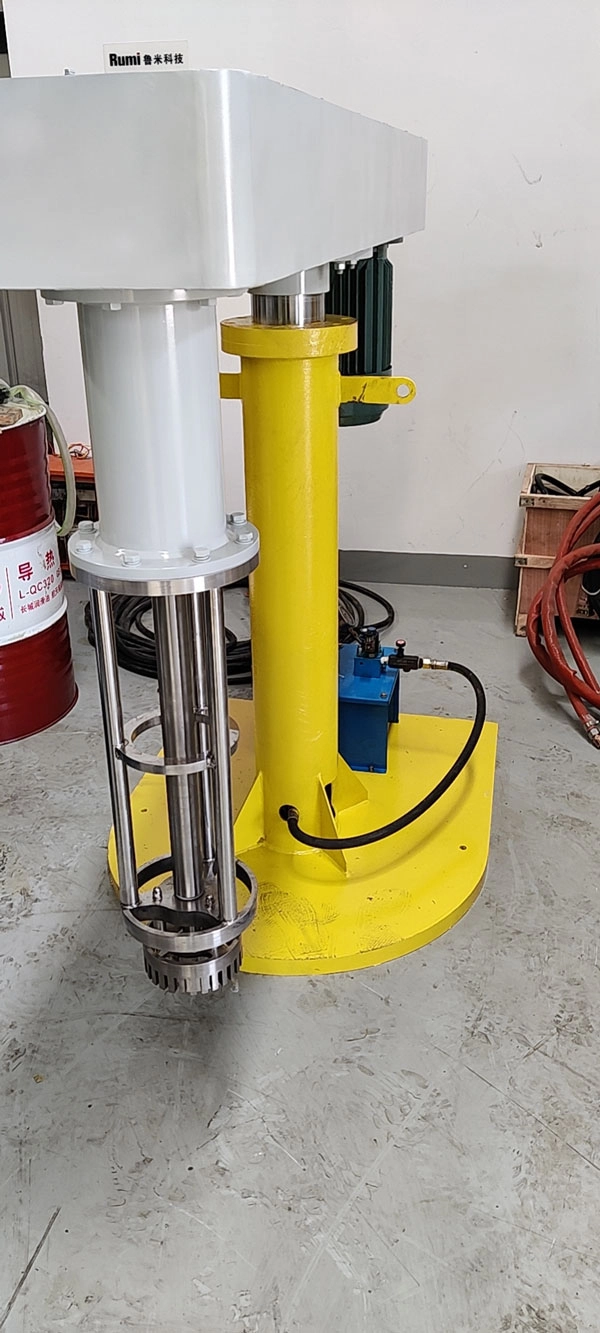

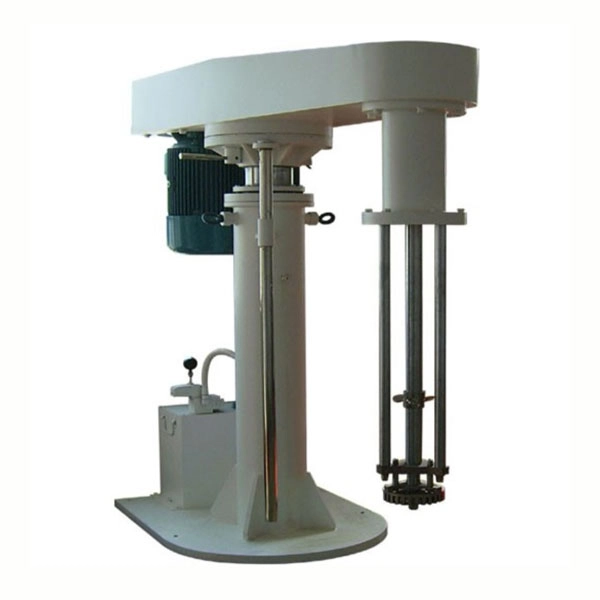

The hydraulic lift emulsifier use an oil hydraulic lift to raise and lower the emulsifying head from and into the mixing tank. The lifting is stable and safe. It’s usually for big batch production.

Features

Different types of emulsifyingheads: straight tooth type, oblique tooth type, intercepting type.

Hydraulic Lifting: the rotor-stator head is raised and lower to the mixing tank by an oil hydraulic lift;

Stepless speed regulation (Frequency Converter Control);

Jacketed tank, which can pass oil or water for heating or cooling;

Wetted parts Stainless Steel 304. SS316L is optional;

Airtight, can be pumped vacuum or protected by inert gas;

Explosion-proof type is available;

Three types of holding clamps: belt, pneumatic and hand-cranking;

Applications

The hydraulic lift high shear emulsifiers suitable formiddle to big batch production in emulsifying and homogenizing process. It’s widely used in biology, food, coatings, inks, textile auxiliaries, cosmetics, lubricants and etc.

Competitive Advantage

High Efficiency

As its structure and high linear speed, it has high efficient shear force.

Optional jacket tank can pass heating or cooling medium, which can improve the mixing efficiency and control the temperature more easily.

The vacuum function helps prevent air entry in the material, which makes the finish product more smoother.
Easy to operate and safe.

use an oil hydraulic lift to raise and lower the rotor-stator blade from and into the mixing tank.
The lifting is stable and safe
Fine processing precision

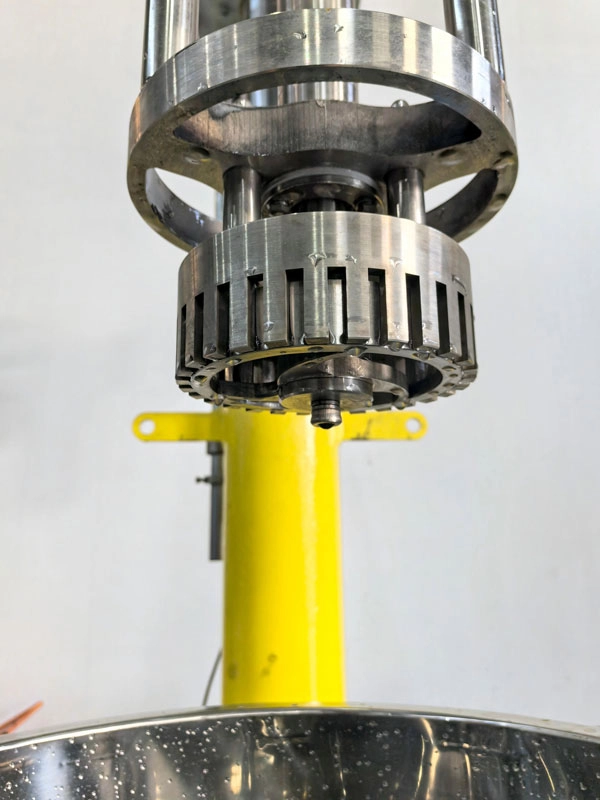

The rotor-stator is made of stainless steelforged material by CNC machining center processing and integrated forming. The gap is small and it has good shear fineness.

Specifications

Model	Power (kw)	Speed (rpm)	Capacity (L)	Stroke (mm)
RMFS-4	4	0-2880	80-300	600
RMFS-7.5	7.5	0-2880	100-400	800
RMFS-11	11	0-2880	150-600	800
RMFS-15	15	0-1440	200-800	800
RMFS-18.5	18.5	0-1440	250-1000	800
RMFS-22	22	0-1440	300-1000	1100
RMFS-30	30	0-1440	400-2000	1100
RMFS-37	37	0-1440	500-2500	1100
RMFS-45	45	0-1440	600-3000	1100
RMFS-55	55	0-980	800-4000	1200
RMFS-75	75	0-980	1000-5000	1200
