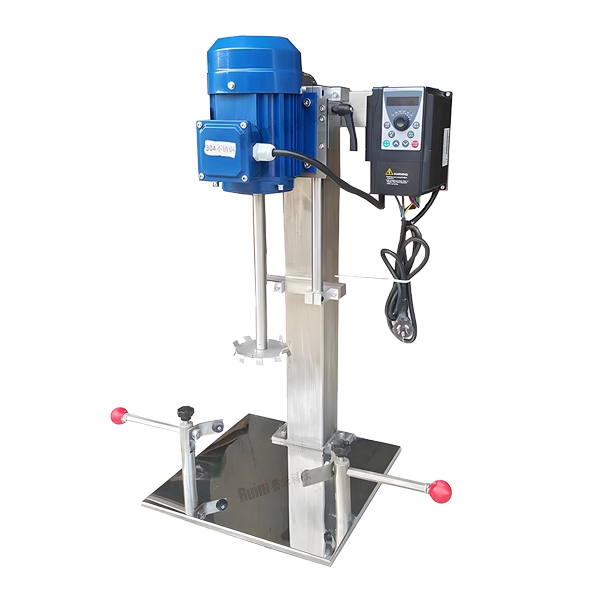

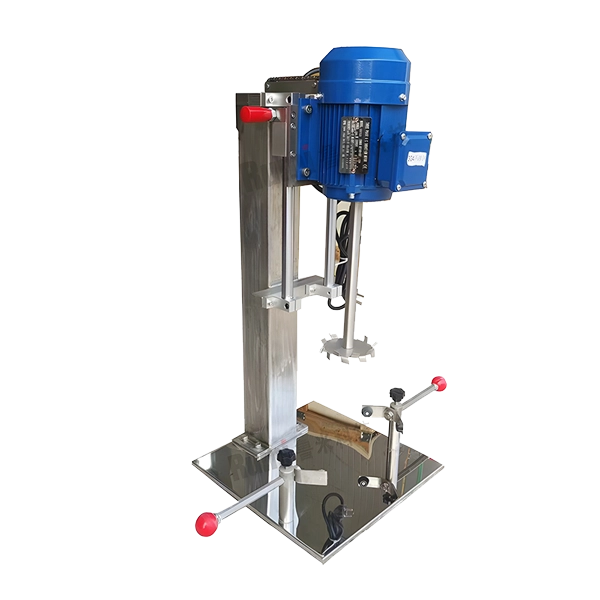

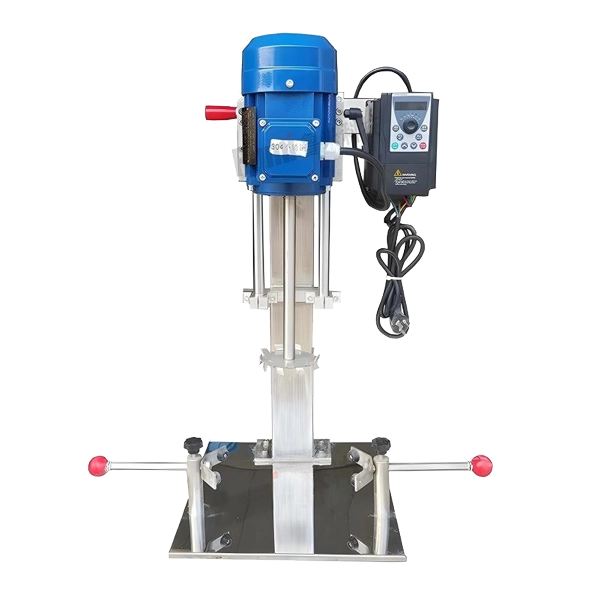

Lab Manual Lift High Speed Disperser

Shanghai Rumi Electromechanical Technology Co., Ltd's headquarters is located in the international financial center – Shanghai. We focus on providing production equipments and integral solutions for fine chemical industry and related fields. Our main products include mixing equipments, dispersing euipments, emulsifiers, mills, reaction kettle, filling machine, etc.

Online consultation Download

Description

The high speed disperser is mainly used for scattering slurry raw materials with different viscosities. The blade is up and down saw-tooth disc form. The high shear disc blade rotates at a high speed and creates a radial flow within a mixing vessel. The flow push the material to the edges of the blade. Then the material is rapidly dissolved and mixed among the liquid.

Lab Manual Lifthigh speed disperser is suitable for low to middle viscosity material. The structure is simple and easy to use. It’s widely used in laboratory and factory for test and experiments. It adopts frequency converter to adjust the speed, and the shaft speed is displayed on the converter directly. According to the speed and disc diameter, the linear velocity can be calcuted. From the relationship between velocity, viscosity and reaction rate, it can provide important data for mass production. The max speed can reach 8000rpm. It can rapidly disperse or dissolve the powder into the liquid by it’s high shear.

Features

Manual Lifting;

High Speed, max can reach 8000rpm;

Speed adjustable (Frequency Converter Control);

Jacketed tank is optional, which can pass oil or water for heating or cooling

Contact material SUS304 and 316L are optional;

Applications

The lab disperser is widely used in laboratory test or small batch production in industry such as paint, pigment, ink, oil and etc.

Competitive Advantage

Low Cost and High Efficiency

It’s small and the cost is very low. For test and experiments, it’s very economical.
The speed is high, the max can reach 8000rpm. It’s high efficiency for small volume.
Easy to operate and convenience.

The structure is very simple, it’s very easy to operate
With frequency converter, the speed can be easily adjusted according to the needs.
Durable

Use industrial three-phase asynchronous motor, it can run for a long time.
The wetted material is stainless steel 304. And SS316L is optional.

Specifications

Model	Disperser Power(W)	Disperser Speed (rpm)	Voltage	Processing Capacity (L)
RMFS-0.55	550	0-8000	220V, 50HZ	0.2-10L
RMFS-1.5	1500	0-6000	220V, 50HZ	5-30L
RMFS-1.1	1100	0-3000	Can be customized	0.2-10L
RMSZ-2.2	2200	0-3000	Can be customized	5-30L
